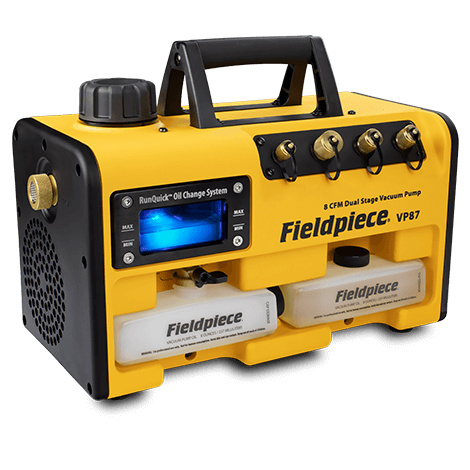

Overview

• 8 CFM flow rate with 15 microns ultimate vacuum

• ¾ HP DC motor for power-to-weight and low voltage operation

• RunQuick® Oil Change System offers on-the-fly oil change in only 20 seconds

• Backlit oil reservoir – allows you to view condition of oil and system

• Extra oil bottle storage

• Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2” for easy hose connections

• Sturdy base stays upright

• Small footprint – 1,346 cubic inches

• Quarter-turn gas ballast with LED indicator

• Convenient, removable cord storage

• A2L certified

Specifications

• Flow Rate: 8CFM

• Oil Capacity: 8oz (237mL)

• Oil Compatibility: Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)

• Fieldpiece part numbers: OIL8X3, OIL32, OIL128

• Oil Backlight: Blue LED

• Oil Drain: Ball valve

• Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2”

• Compressor: Rotary vane, two stage

• Motor: 3/4 HP Brushless DC

• RPM: 2500

• Power Source: 120 VAC @ 60 Hz 1 phase

• Nominal Current Draw: 6.0 AAC

• Ultimate Vacuum at Input Ports: 15 microns

• Dimensions: 7.9 inch x 11.7 inch x 16.0 inch (201 mm x 296 mm x 406 mm)

• Weight: 27 lb / 12.4 kg

• Operating Environment: 30°F to 122°F (-1.1°C to 50°C)
