HMG F1P Series
Residential Air Handlers
Application
2 - 5 ton systems
Sequenced for demand management
External access to heater circuit breakers
1 piece design
Smaller profile for closet applications
Multi-position = Upflow/Horizontal Left/Right
Approved for installation in manufactured housing and mobile homes
Cabinet
Filter rack with thumb screws for easy access and removal
Polymer plugs on drain locations for easy installation
Baked polyester paint finished over galvanized steel for maximum durability
High-strength/heat resistant/corrosion resistance SMC drain pans
Antimicrobial treated polymer drain pan built to resist mold and mildew growth
2% or less air leakage
Coils
Total corrosion protection technology designed coil
Enhanced tube-and-fin coil design featuring MHT™ Technology
Lanced fins for maximum heat transfer
Factory leak tested and pre-charged with nitrogen holding charge
Efficient PSC blower motors (Constant Torque on 4T and 5T models)
Field installed 5 - 20kW electric heat kits
Sleeves on distributor tubing to protect tubes

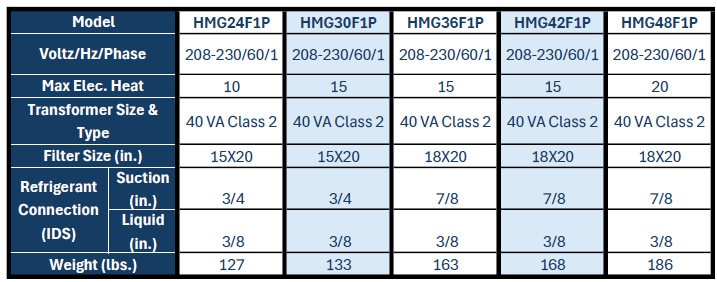

Technical Specifications

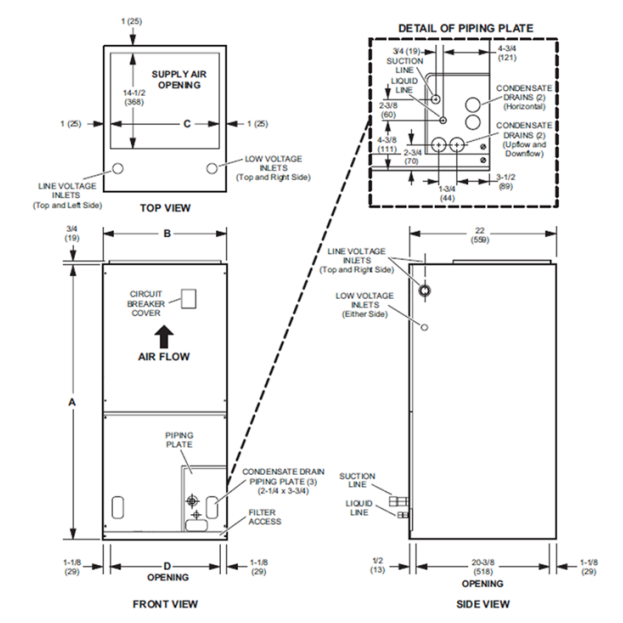

See diagram below table for reference
